Detailed Specification

Please note: all imperial measurements are approximate and the Sheriff garden buildings are made from metric measurements.

Product Name: 10 x 6 (3.12m x 1.79m) Mercia Overlap Shed - No Windows
Footprint (Depth x Width): 3.01m x 1.90m (9'8" x 6'2")
Height To Ridge: 1.98m (6'5")
Height To Eaves: 1.56m (5'1")
Walls: 7mm Overlap
Door: Double
Door(s) Height x Width: 1.66m x 0.88m (5'4" x 2'8")
Lock: Turn Button
Roof: 8mm Solid Sheet Board
Roofing Felt: Green Mineral Felt
Floor: 10mm Solid Sheet Board
Bearers: 27mm x 32mm (1" x 1")
Bearers Direction: Left to Right
Window(s): NO
Framing 28mm x 28mm (1" x 1")
Portabases Available: Yes
Eco Bases Available: N/A
Number Required: N/A
Manufacturers Guarantee: 10 Year Anti-Rot Warranty
FSC Certified: Yes
Free Delivery: Yes
Assembly Available: No
EAN Number: 5029442074412
Manufacturer: Mercia


When it comes to the amount of sheer space offered by a garden building, it is hard to do much better than 10 x 6 Mercia Windowless Overlap Shed without compromising on quality. This excellent storage shed has all the room you could need to store gardening equipment, bicycles, and much more. A 7mm timber cladding will help to keep the elements off your stored items.


Despite the simple design of this shed, plenty of the features in design and materials have been chosen with care to ensure you have the best possible experience storing items in your garden.

The roof and floor of the 10 x 6 Mercia Windowless Overlap Shed feature a tough solid sheet board, chosen for its excellent water resistance that will help keep your items dry. Timber floor joists beneath the floor help raise it above the ground and create additional strength that is helpful for storing heavier items. Meanwhile on the roof, mineral roofing felt offers protection from the elements and some rustic charm.

The characterful walls of this shed make use of a rough sawn timber cladding, with overlapping horizontal boards positioned to divert rainfall away from your stored items. This 7mm overlap cladding features FSC certified timber sourced from sustainable forests, and is dip-treated to give customers a good level of initial protection for their shed while it is being built. When complete, we advise adding to this protection with a high-quality wood preservative to ensure your timber doesn't fall prey to damp or insect infestation. Protek has an impressive range of treatments that can be added to your order through elbec, a brand who we trust enough to use it on the garden buildings at our Nottingham showsite.

Additional Details

All of the parts and fixtures needed to assemble your shed at home are included with your flat-packed shed. Detailed and easy-to-follow instructions are also included. In order to receive the full 10-year anti-rot guarantee on your shed, it is necessary that you treat the shed with a timber preservative prior to or shortly after construction. We predict it will take one or two days to complete your shed, and it will be far easier with an extra pair of hands.

Key Features

  • Free UK mainland delivery with 'pick a day' delivery option

  • Dip-treated timber for a good level of initial protection from the elements
  • 7mm overlap wall cladding
  • Spacious interior thanks to 10 x 6 footprint
  • Double doors are ledged for extra strength and features the same high-quality timber as the walls
  • Windowless design is simple and discreet
  • 28mm x 28mm timber used for the robust internal framing
  • Fantastic value shed that will fit in many gardens
  • Solid sheet board used for the roof and floor
  • 10-year anti-rot guarantee
  • Decorative finial gives the shed a touch of charm


ALL DELIVERIES ARE DELIVERED TO KERBSIDE OR DRIVEWAY. All of our Mercia products are delivered flat packed other than fence panels (which are delivered fully constructed), direct to your home, and are supplied with a set of instructions to support assembly.

Booking Delivery

You will be required to book your delivery date at the time of placing your order (except for Metal Shed). Our 'Request a Delivery Date' service is available to the majority of areas and you'll find that the majority of the UK postcodes are FREE but some areas may incur a delivery surcharge and some postcodes are not covered at all. Select a 'requested delivery date' by entering your postcode in the 'Request a delivery date' section above. You will also be notified at this time if your area incurs a surcharge or delivery is not covered in your area.

Prior to Delivery

On the morning of your delivery date, you'll be sent an update by text with an estimated 2-hour delivery slot (this update can only be provided where a mobile number has been supplied on the billing address section at the time of checkout) together with a link to the manufacturer delivery portal where you'll be able to track your order.

Please note: Mercia Metal Sheds ONLY - your order is delivered by a courier you will not be notified prior to the delivery. If you are not in on the day of the delivery you will be carded and asked to contact the courier to arrange a new mutual delivery date. The estimated delivery lead time for Mercia's Metal sheds is identified on the product for the metal shed. Lead times are on working days (Monday - Friday) excludes Bank Holidays. These estimated lead times are provided by the manufacturer. Some remote areas will take a little longer.

Upon Delivery

Your order is delivered either kerbside or driveway and will be delivered on either a 3.5T, 7.5T or 18T Lorry. Unfortunately due to health and safety and insurance liabilities the driver will not be able to take your goods around to the back of your property but may upon request place the product at the side of the house if there are no access or restriction issues. We would not risk damaging your property whilst delivering a product to an unsafe location. Unfortunately, we will not be able to go through your property.

We would recommend against arranging for a third party to install the building before it's been delivered and checked that all parts are present, as we cannot be held liable for any third-party costs.


Orders with Assembly

The lead time for our installation option is around 12 weeks from the date of order. With the installation option, the majority of orders will have their delivery and installation on separate days; there will be a small number of orders which will have delivery and installation on the same day. You will be advised by the manufacturer's installation team which category your order falls into.

Depending on the installation option for your order, you will be contacted within the delivery timescale and given a date for either delivery/assembly on the same date or a separate date for delivery and assembly.

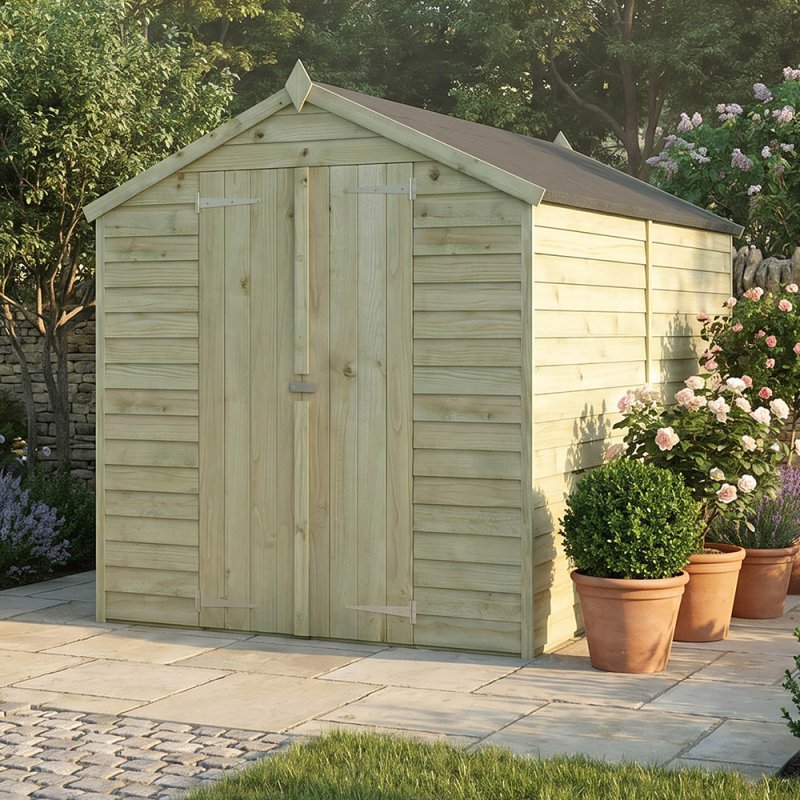

10 x 6 (3.12m x 1.79m) Mercia Overlap Shed - No Windows


Product code - 20010137


Description Information

The 10 x 6 Mercia Windowless Overlap Shed is a large and robust storage garden building with few frills but plenty of utility. Some key features include:

  • 7mm overlap cladding using horizontal timber boards that have been dip-treated for good initial protection
  • Solid sheet board floor with joists is included take help keep your items away from the ground
  • Secure windowless design for a more subtle visual impression in gardens
  • Impressive 10-year anti-rot guarantee from Mercia, assuming the recommended steps are taken to look after your shed

View full specification Delivery

Usually delivered: Use Pick A Day delivery below for your earliest delivery date to your Post Code.

Note: Currently not available for delivery to Offshore Post Codes.

excludes installation option
Choose additional options
Protek Wood Stain and Protector for Mercia Products
Protek Wood Stain and Protector 5 litres - Gun Metal Grey£29.99
Protek Wood Stain and Protector 5 litres - Chestnut£29.99
Protek Wood Stain and Protector 5 litres - Silver Fir£29.99
Protek Wood Stain and Protector 5 litres - Teak£29.99
Protek Wood Stain and Protector 5 litres - Sky Grey Blue£29.99
Protek Royal Exterior Superior Wood Finish for Mercia Products
Protek Royal Exterior Superior Wood Finish 5 litres - Golden Oak£59.99
Protek Royal Exterior Superior Wood Finish 5 litres - Sage Leaf£59.99
Protek Royal Exterior Superior Wood Finish 5 litres - Silver Grey£59.99
Protek Royal Exterior Superior Wood Finish 5 litres - Clear£59.99
Protek Royal Exterior Superior Wood Finish 5 litres - Eggshell Blue£59.99
Protek Royal Exterior Superior Wood Finish 5 litres - Slate Grey£59.99
Protek Royal Exterior Superior Wood Finish 5 litres - Mendip Mist£59.99

Your choices:

  • 10 x 6 (3.12m x 1.79m) Mercia Overlap Shed - No Windows£709.99
